Compact and portable push-rod system with integrated PC
Product Description

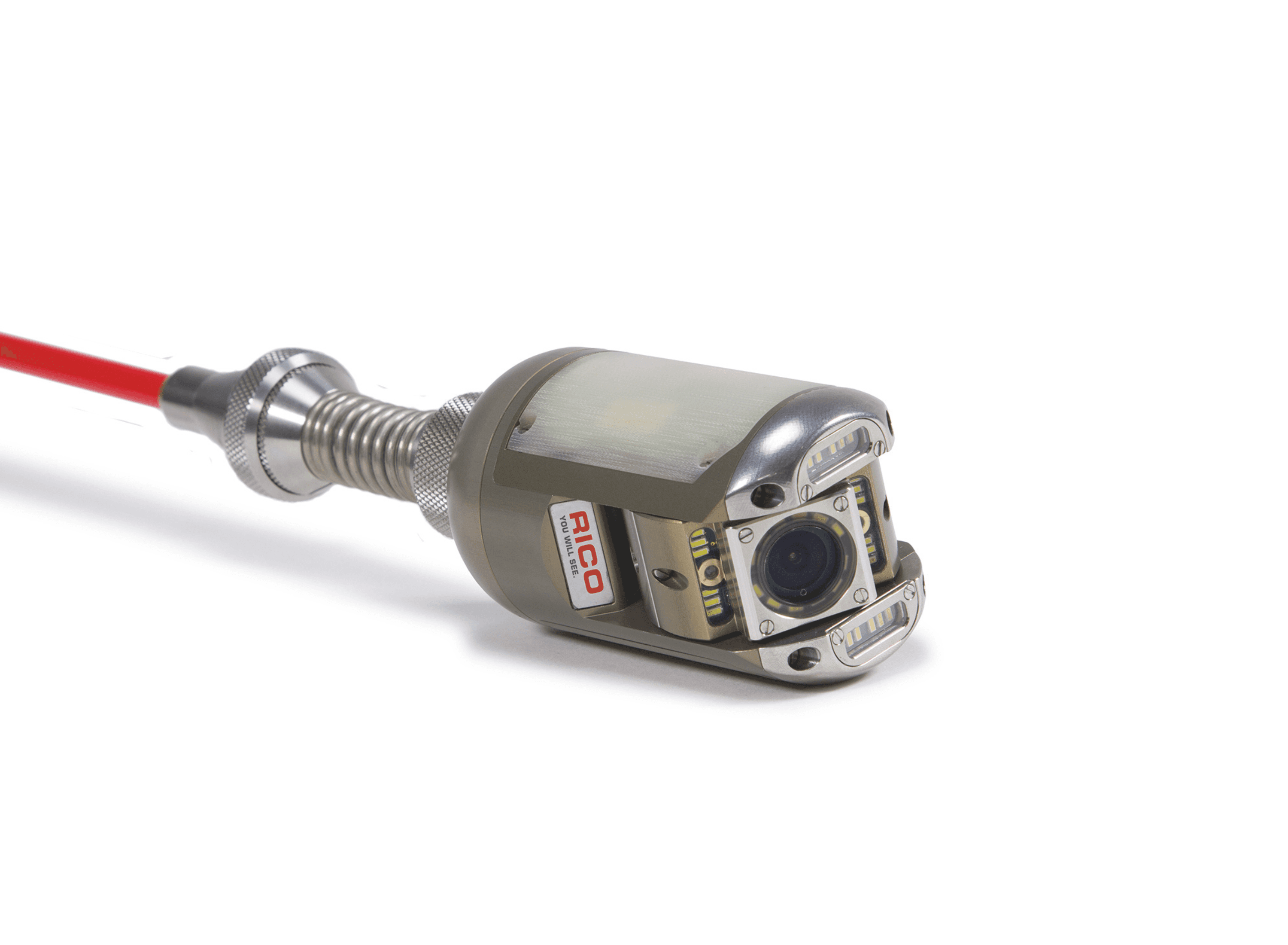

The TINY|PC.3 is a lightweight and compact push-rod system designed for efficient pipe inspections in and around buildings. Weighing less than 20 kg, it features a telescopic push handle for easy transportation. The system is suitable for inspecting pipes with diameters starting from 30 mm and is compatible with various RICO cameras, including the MINI, VERTICA 30, VERTICA 40, and SR50. A 12.1-inch super-bright touchscreen display ensures optimal visibility, even in direct sunlight. The integrated PC allows for the operation of inspection software, providing a comprehensive solution for pipe inspections.
Product Highlights
Central Control Unit
Flexible Power Options
1-Click Quick Change Basket
Introducing the TINY|PC.3
In this video, you’ll see the new TINY|PC.3 in action, showcasing it's innovative features.
Application Range
DN 30 to DN 300
Cable Length
60 m, 100 m, or 22 m with MINI camera head
Material (reel)
Aluminum
Meter Counter
Yes
Basket Brake
Yes, adjustable

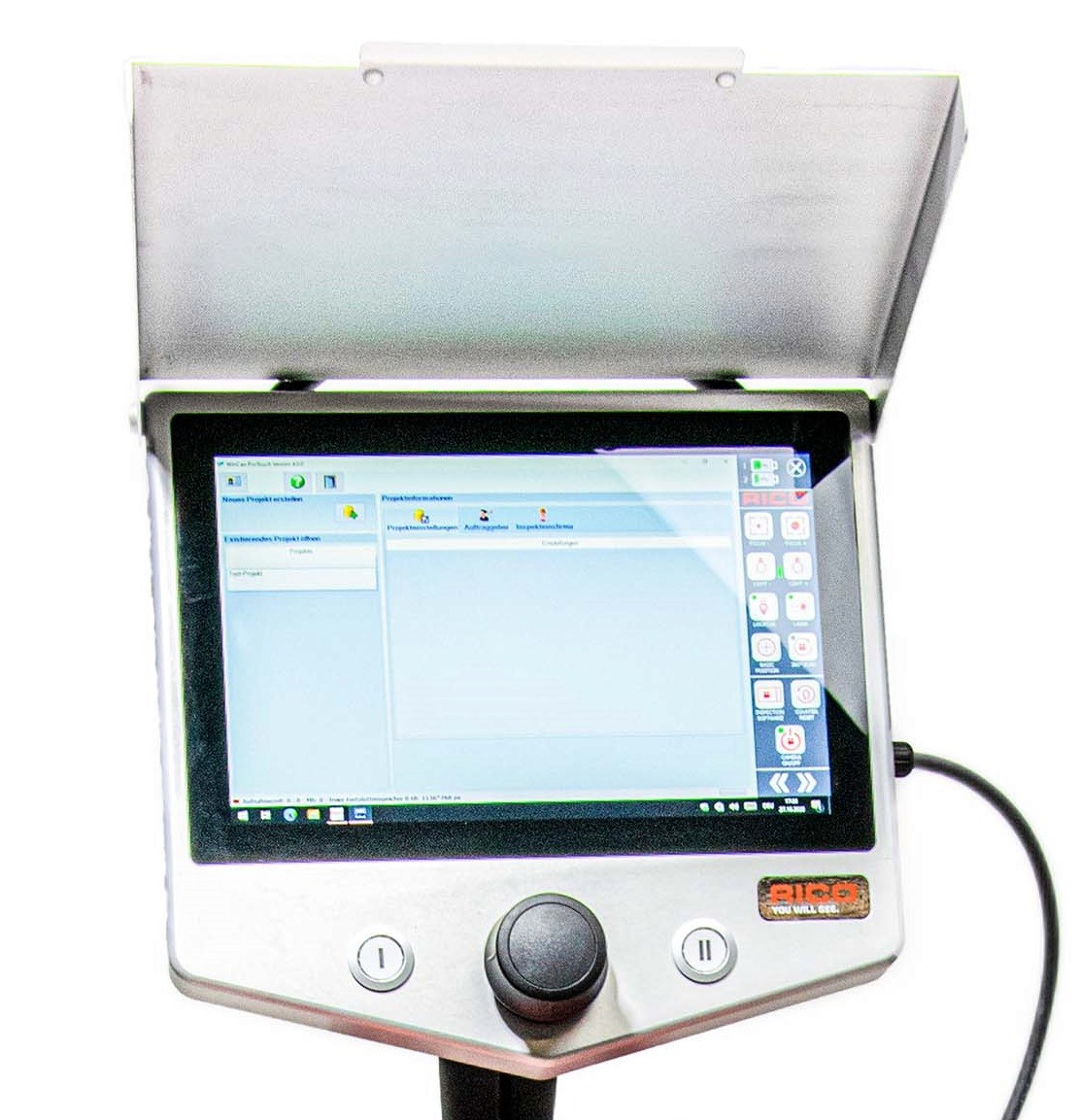

PC Monitor
30.7 cm/12.1 inches
Capacitive touchscreen (multi-touch)
Daylight-readable
Brightness: 1000 cd/m²
Resolution: 1280 x 800
Contrast: 1000:1
Processor
Linux with QuadCore 2.8 GHz
Hard Drive
256 GB SSD, for up to 300 hours of recording time
Operating System
Windows 10 Professional
USB Ports
2 × USB 3.0 and 1 × USB 2.0
Battery Type
Approximately 8 hours (4 hours per battery) with two standard batteries, or approximately 16 hours (8 hours per battery) with two large batteries
Battery Runtime
Available when used with an Ex-protected camera (optional)
