crossVision

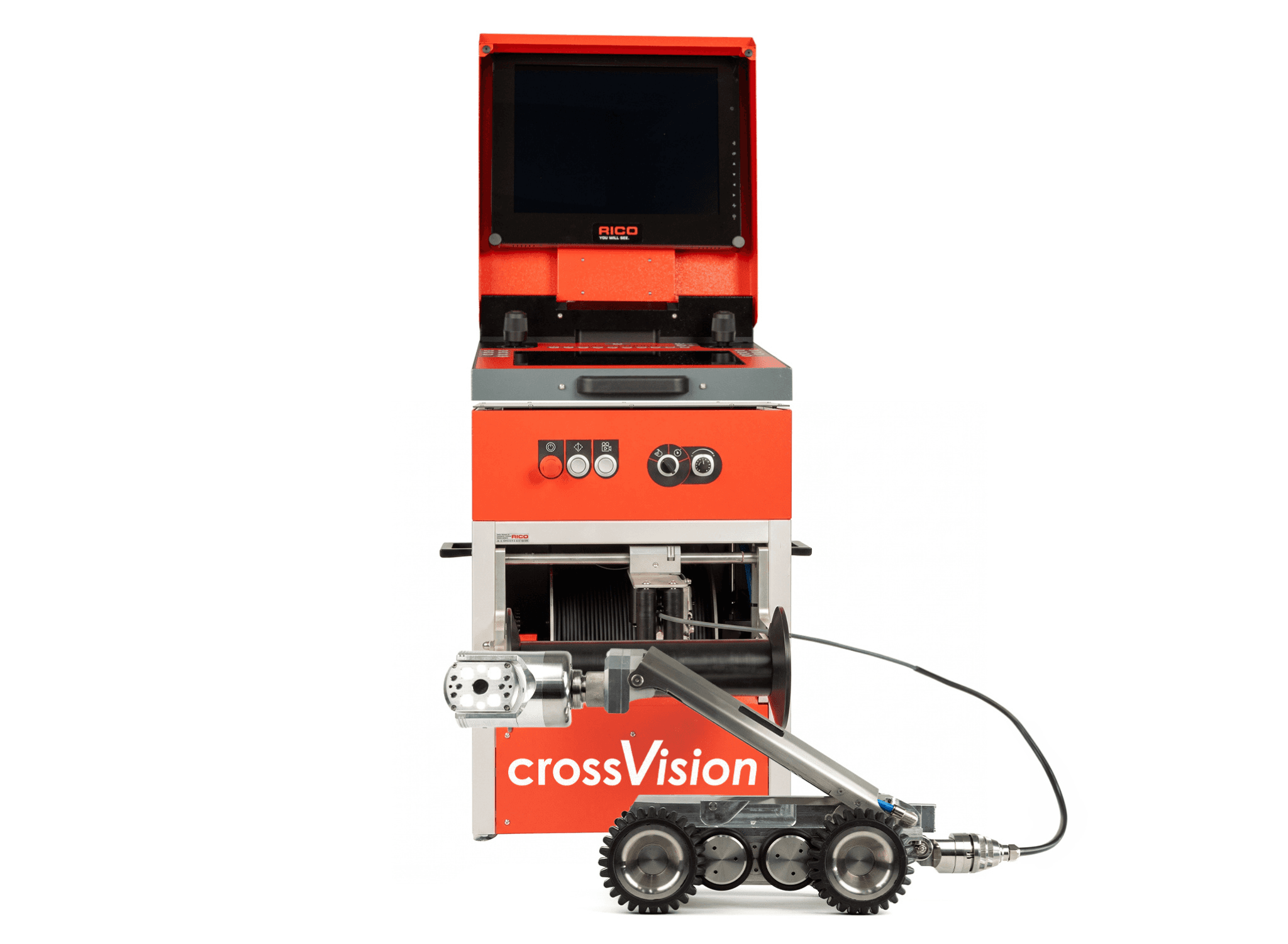

Modular crawler system with integrated PC for versatile pipe inspections

Product Description

The crossVision sets new standards in pipe inspection by combining high-definition image quality with RICO's proven single-wire transmission technology. Building on established camera and crawler systems, it brings HD performance to a single-wire platform for the first time, enabling long uninterrupted inspection distances with the full range of functionality. Thanks to the low cable weight per meter, the complete system weighs just 60 kilograms for 300 meters of cable, making it exceptionally lightweight and easy to transport. The reduced cable drag also allows greater spans between manholes and more sections to be inspected without repositioning. At its core, RICO's unique 200V DC transmission delivers high energy levels through a minimal cable cross-section and supports distances of up to 600 meters. The straightforward single-wire construction lowers operating costs compared to multi-wire alternatives and can be repaired in well under an hour, significantly reducing downtime.

Product Highlights

Product Highlights

Flexible Inspection Capabilities

  • For inspection of pipe diameters from 100 mm up to larger dimensions

  • Supports various RICO cameras and carriages for diverse applications

  • Single-wire cable enables distances of up to 600 meters at full functionality

  • For inspection of pipe diameters from 100 mm up to larger dimensions

  • Supports various RICO cameras and carriages for diverse applications

  • Single-wire cable enables distances of up to 600 meters at full functionality

Lightweight and Mobile Design

  • Complete system weighs just 60 kg with 300 m of cable for easy transport

  • Low cable drag allows greater spans and more sections per setup

  • Suitable for both mobile and stationary use across varied site conditions

  • Complete system weighs just 60 kg with 300 m of cable for easy transport

  • Low cable drag allows greater spans and more sections per setup

  • Suitable for both mobile and stationary use across varied site conditions

HD Performance on Single-Wire Technology

  • Combines high-definition image quality with proven single-wire transmission

  • Unique 200V DC transmission delivers maximum energy through a minimal cable cross-section

  • Simple cable construction enables repairs in well under an hour, minimizing downtime

  • Combines high-definition image quality with proven single-wire transmission

  • Unique 200V DC transmission delivers maximum energy through a minimal cable cross-section

  • Simple cable construction enables repairs in well under an hour, minimizing downtime

Technical Data

Technical Data

PC Monitor

  • 31 cm/ 12.1 inches

  • Capacitive multi-touch

  • Daylight-readable and anti-glare

  • Brightness: 1,000 cd/m²

  • Resolution: 1280 x 800 pixels

  • Contrast: 1,000:1

Observation Monitor

  • 31 cm/12.1 inches

  • Daylight-readable and anti-glare

  • Brightness: 800 cd/m²

  • Resolution: 1024 x 7568 pixels

  • Contrast: 900:1

Processor

Intel Core i5 13th Gen.

Hard Drive

1 TB NVME SSD

RAM

16 GB

Operating System

Windows 11 Professional 64 Bit

Ports

  • 5x USB 3.2 Type A

  • 1x USB 3.2 Type C

  • 2x USB 2.0 Type A

  • 1x RJ45

Video Signal

HD (single-wire tansmission)

Transmission

200 V DC, single wire

Cable Length

300 m standard, up to 600 m possible

Weight
